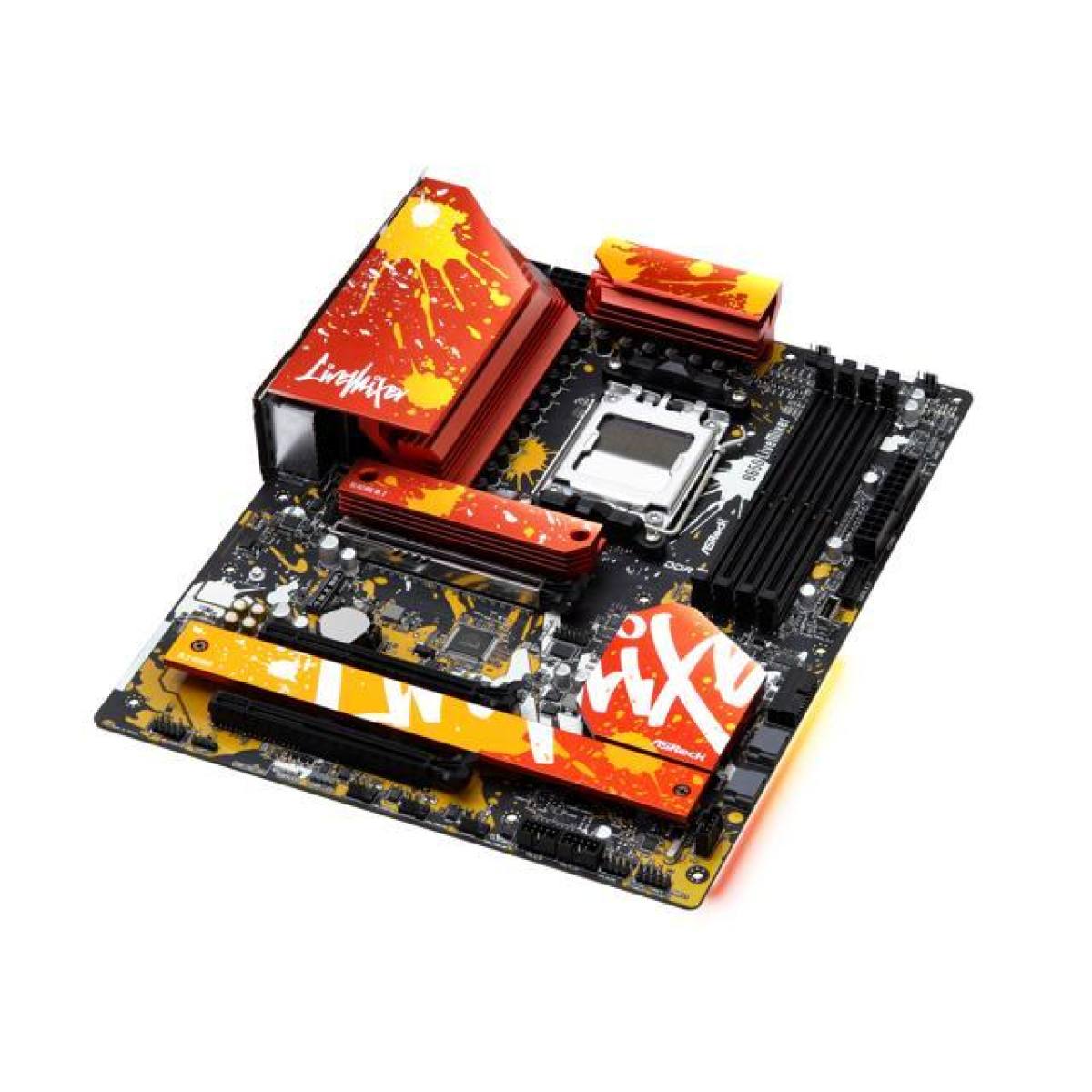

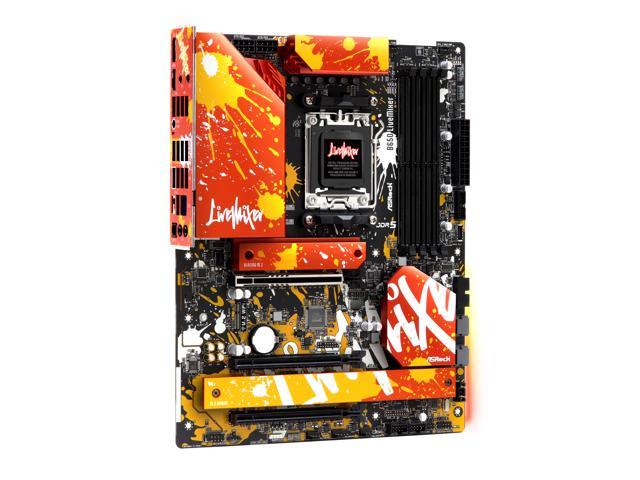

Mainboard Asrock B650E LiveMixer | AM5 - DDR5
- Tên sản phẩm: Mainboard Asrock B650E LiveMixer
- Socket: AM5
- Chipset: B650E
- Số khe RAM: 4x DDR5 DIMM, Dung lượng bộ nhớ tối đa 128GB
- Khe cắm ổ cứng: 3 x Khe cắm M.2 & 2 x Cổng SATA III
- Số khe mở rộng: 3 x Khe cắm PCI-E
- Tiêu chuẩn: ATX
- Kích thước: 305.00 mm x 24.4 mm
- Mã sản phẩm: F127AADB46
- Bảo hành: 36 tháng
7,199,000đ
Địa chỉ: 495/8/37 Tô Hiến Thành, Phường Diên Hồng, Tp Hồ Chí Minh
Thời gian: Thời gian bán hàng từ 9h30 - 20h30
Hotline: 0.888.000.112
- Thông số kỹ thuật
|
GENERAL INFORMATION |
Product name | ASRock B650 LiveMixer |
| Brand | ASRockASRock | |
| Model | B650 LIVEMIXER | |
|
PROCESSOR |
Processor support | AMD AM5 |
| Number of CPUs supported | 1 | |
| CHIPSET | Chipset | AMD B650 |
|
MEMORY |
Memory format | 4 X DIMM 288 pins (DDR5) |
|
Memory Frequency(ies) |
DDR5 4400 MHz | |
| DDR5 4800 MHz | ||
| DDR5 5200 MHz | ||
| DDR5 5600 MHz | ||
| DDR5 6000 MHz | ||
| DDR5 6200 MHz | ||
| DDR5 6400 MHz | ||
| Memory type | DDR5 | |
| Memory technology | Dual Channel | |
| Maximum RAM capacity per slot | 32 GB | |
| Maximum RAM capacity | 128 GB | |
|
GRAPHIC |
Integrated graphics controller | No |
| Compatible graphics core integrated in the CPU | Yes | |
|
EXPANSION SLOTS |
Graphic connector(s) |
1 X PCI Express 4.0 x16 |
| 1 X PCI Express 4.0 x16 (x4) | ||
| Number and Type of slots | 1 X PCI Express 4.0 x16 (x4) | |
| Multi-GPU type | CrossFireX | |
|
AUDIO |
Audio Chipset | Realtek ALC897 |
| Number of audio channels | 8 | |
|
NETWORK |
Number of ports/Ethernet controler | 1 X Realtek RTL8125BG |
| Network standard(s) |
2.5 Gbps Gigabit Ethernet (2.5 GbE) |
|
| Wi-Fi | No | |
|
STORAGE |
RAID supported | Yes |
|
Hard drives connectors |
2 X M.2 - PCI-E 4.0 x4 | |
| 1 X M.2 - PCI-E 5.0 x4 | ||
|
2 X Serial ATA 6Gb/s (SATA Revision 3) |
||
| Number of M.2 slot(s) | 3 | |
|
Supported RAID Modes |
0 | |
| 1 | ||
| 10 | ||
|
CONNECTIVITY |
Number of connectors for fans | 4 |
|
Rear panel connectors |
1 X Line OUT (3.5mm Jack Female) |
|
|
1 X Microphone (3.5mm Jack Female) |
||
| BIOS Flash Update | ||
| 1 X RJ45 Female | ||
| 8 X USB 2.0 | ||
| 4 X USB 3.0 | ||
| 1 X USB 3.1 | ||
| 1 X USB 3.1 Type C | ||
| 1 X DisplayPort Female | ||
| 1 X HDMI Female | ||
|
Additional connectors |
1 X LED RGB connector(s) | |
|
3 X Addressable LED RGB connector(s) |
||
| Front panel audio | ||
| 2 X +12V (Power supply P8) | ||
| 1 X ATX 24 Pin | ||
| 2 X Internal USB 2.0 | ||
| 2 X Internal USB 3.0 | ||
| 1 X Internal USB 3.2 | ||
| 1 X Thunderbolt 4 | ||
|
PHYSICAL CHARACTERISTICS |
Motherboard format | ATX |
| Length | 305 mm | |
| Width | 244 mm | |
|
EQUIPMENT |
Advanced overclocking features | Yes |
| Use | Gamer | |
| LED | Yes | |
|
WARRANTIES |
Commercial warranty | Seller 2 years |
| Legal warranty | See terms & conditions |
