Mainboard Asus PRIME Z890M-PLUS WIFI-CSM

ASUS

Mainboard Asus PRIME Z890M-PLUS WIFI-CSM

Tên sản phẩm: Mainboard Asus PRIME Z890M-PLUS WIFI-CSM
Socket: LGA 1851
Chipset: Intel Z890 Chipset
Số khe RAM: 4x DDR5 DIMM Slot
Khe ổ cứng: Total supports 3 x M.2 slots and 6 x SATA 6Gb/s port
Khe cắm mở rộng:
- Intel Core Ultra Processors
- 1 x PCIe 5.0 x16 slot
- Intel Z890 Chipset
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 4.0 x16 slots (support x1 mode)
Hỗ trợ không dây: Wifi 7 : Bluetooth 5.4
Tiêu chuẩn: M - ATX

Tình trạng: Còn hàng

Mã sản phẩm: 83D808E58D
Bảo hành: 36 tháng

8,890,000đ

Số lượng:

Mua ngay

Địa chỉ: 495/8/37 Tô Hiến Thành, Phường Diên Hồng, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

Mô tả

Thông số kỹ thuật

CPU hỗ trợ	Support Intel Core Ultra Processors (Series 2) , LGA1851 Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Chipset	Intel Z890 Chipset
RAM hỗ trợ	4 x DIMM slots, max. 192GB, DDR5 Support up to 7600+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)* Dual channel memory architecture

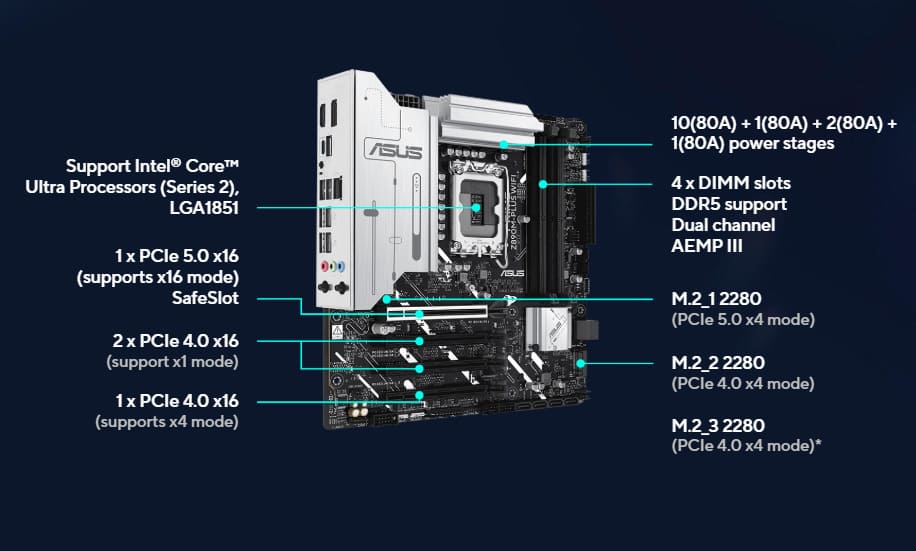

Khe cắm mở rộng	Intel Core Ultra Processors 1 x PCIe 5.0 x16 slot Intel Z890 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) 2 x PCIe 4.0 x16 slots (support x1 mode)
Ổ cứng hỗ trợ	Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports Intel Core Ultra Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) Intel Z890 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports

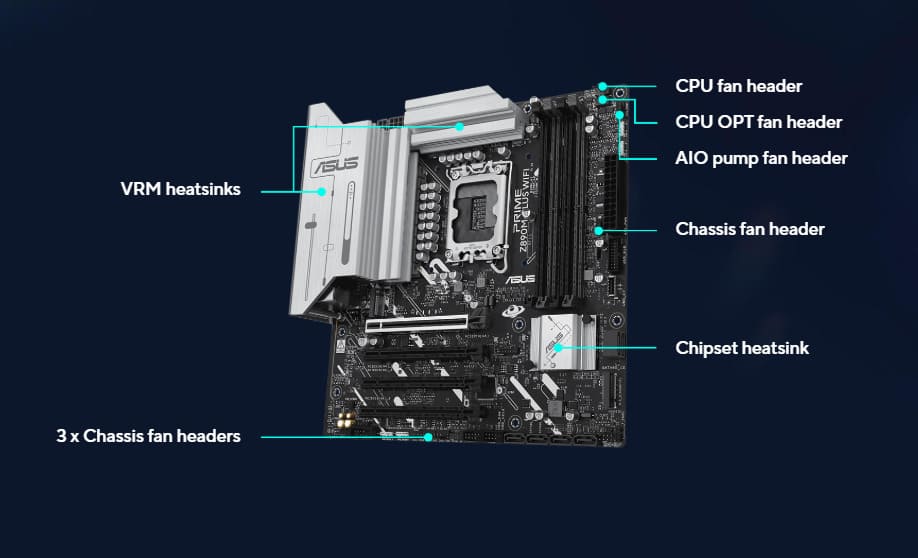

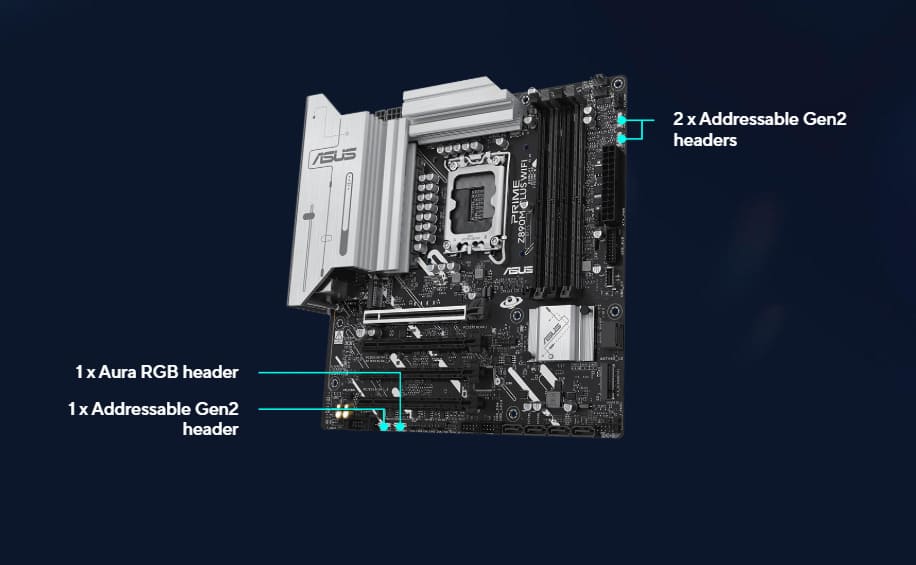

Cổng kết nối (Internal)	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connector 1 x 4-pin +12V CPU Power connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt (USB4) header

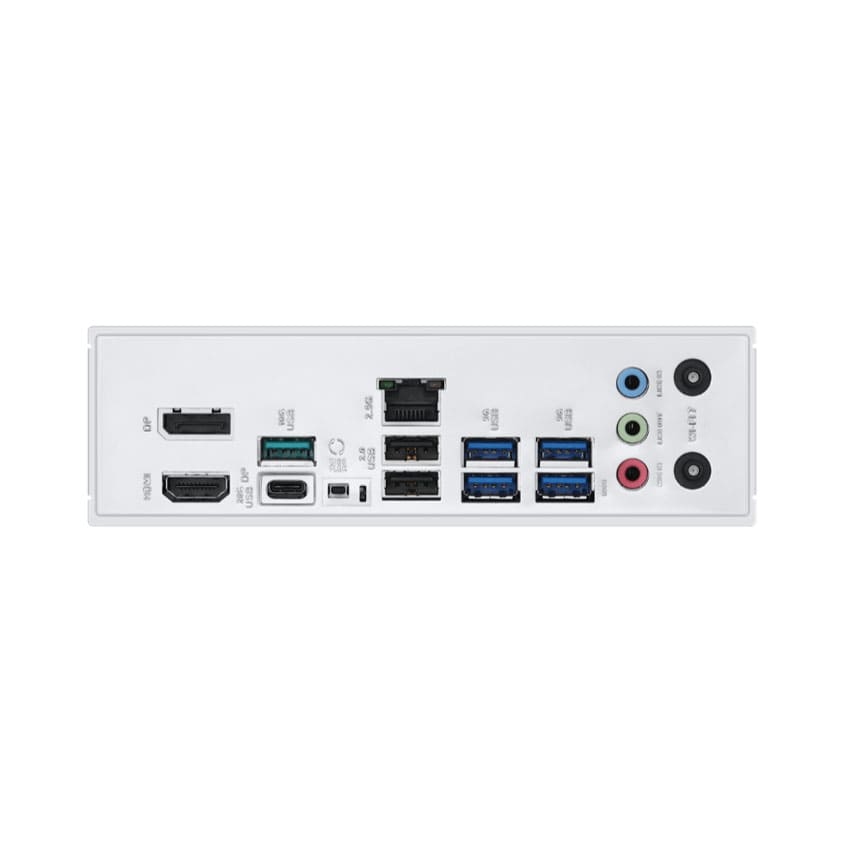

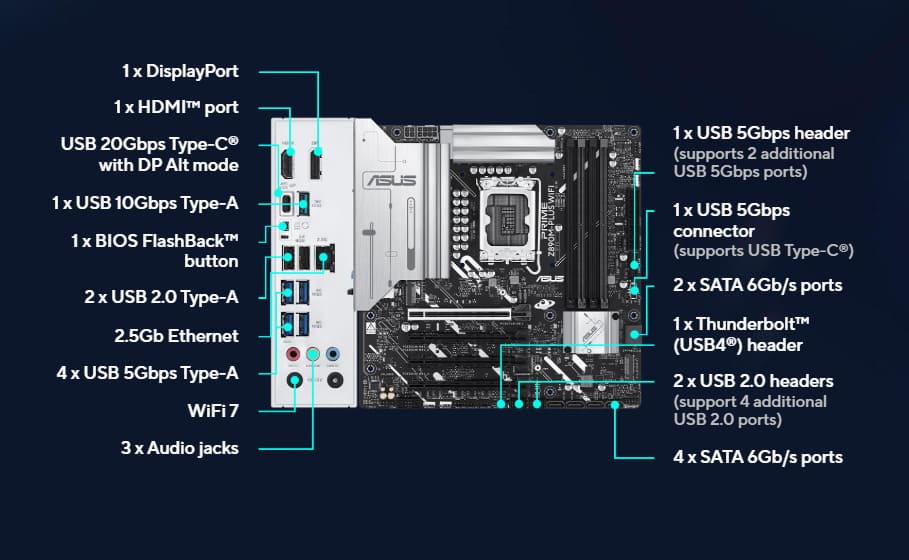

Cổng kết nối (Back Panel)	1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode) 1x USB 10Gbps port (1 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button
LAN / Wireless	LAN 1 x Realtek 2.5Gb Ethernet ASUS LANGuard Wireless Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth v5.4
Kích cỡ	mATX Form Factor 24.4 cm x 24.4 cm
