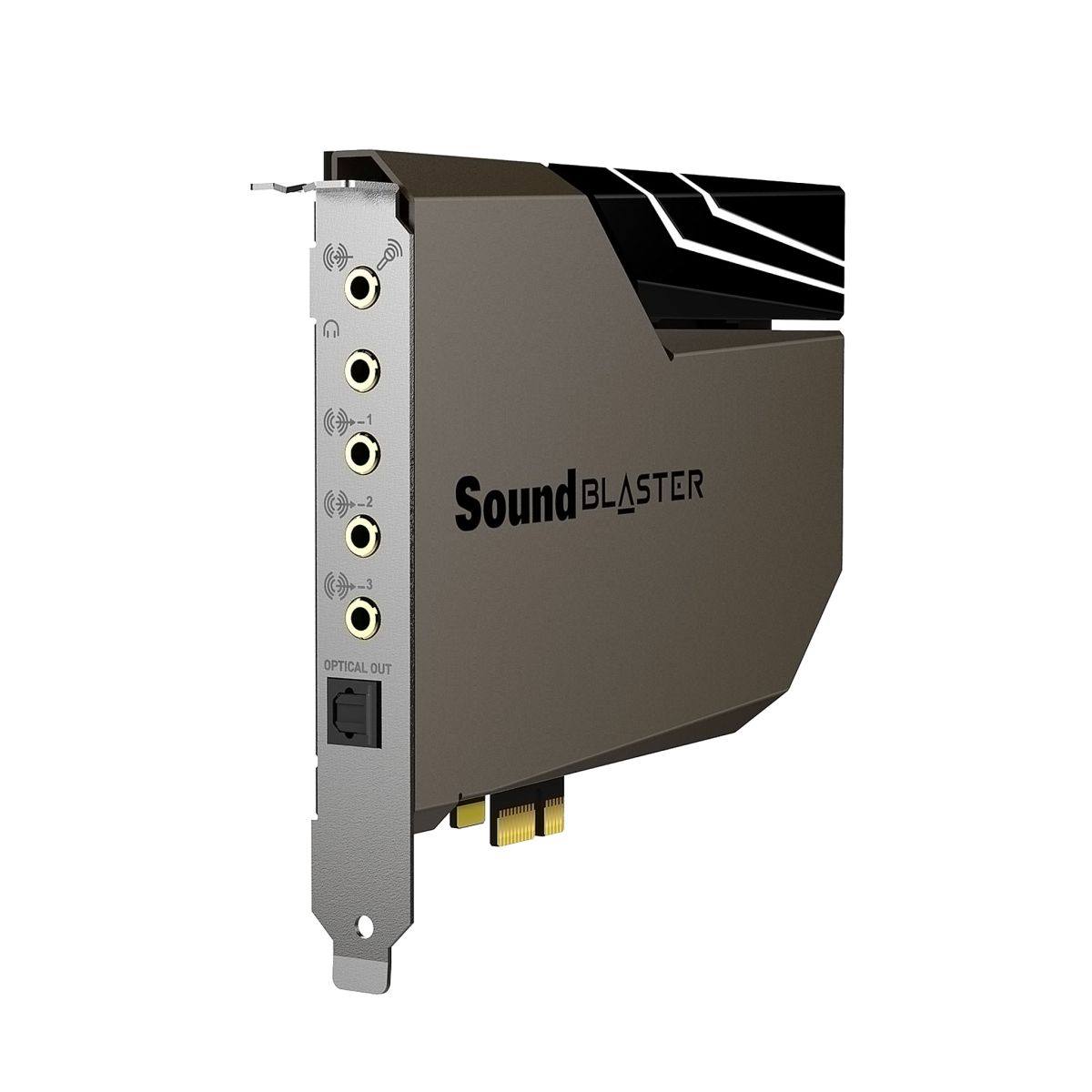

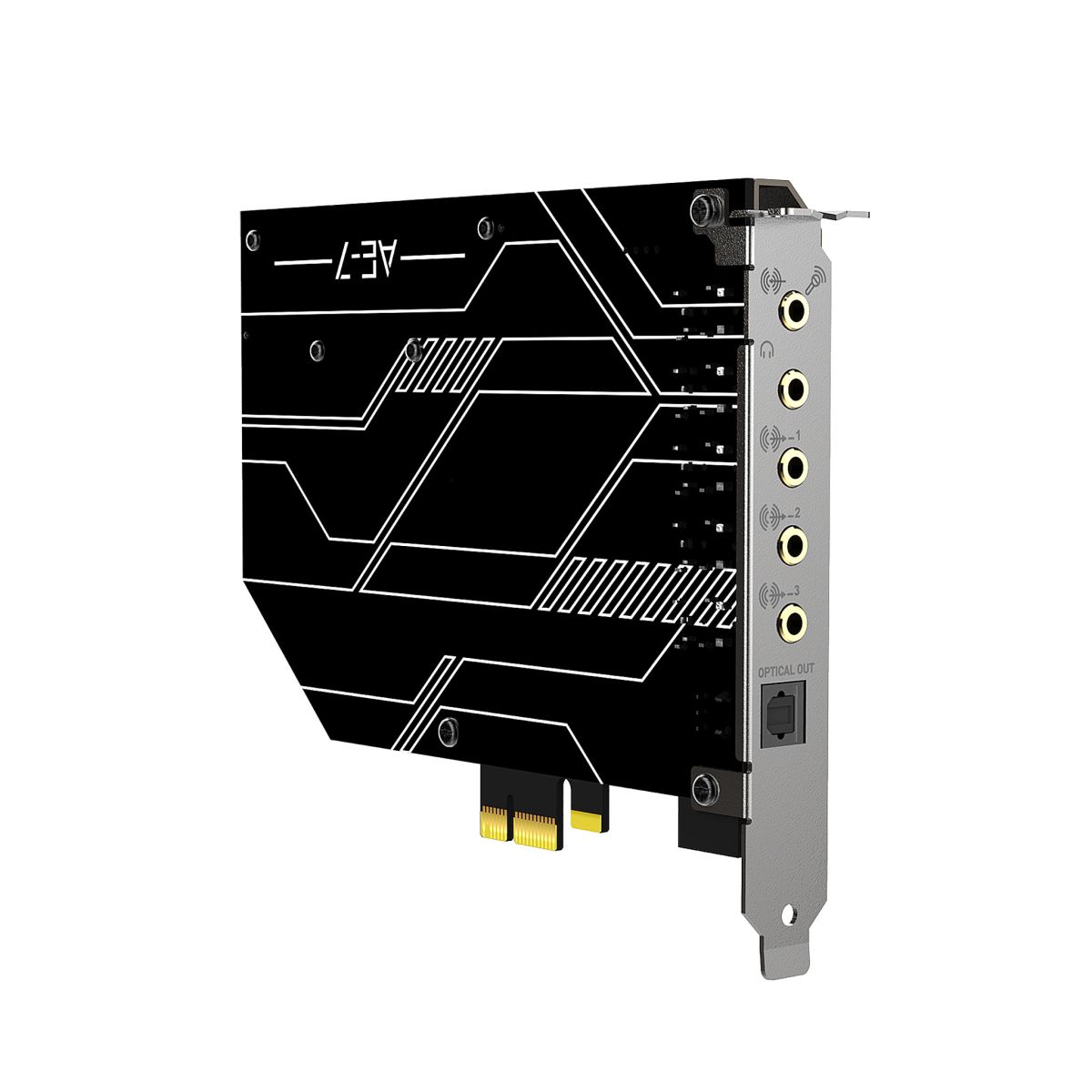

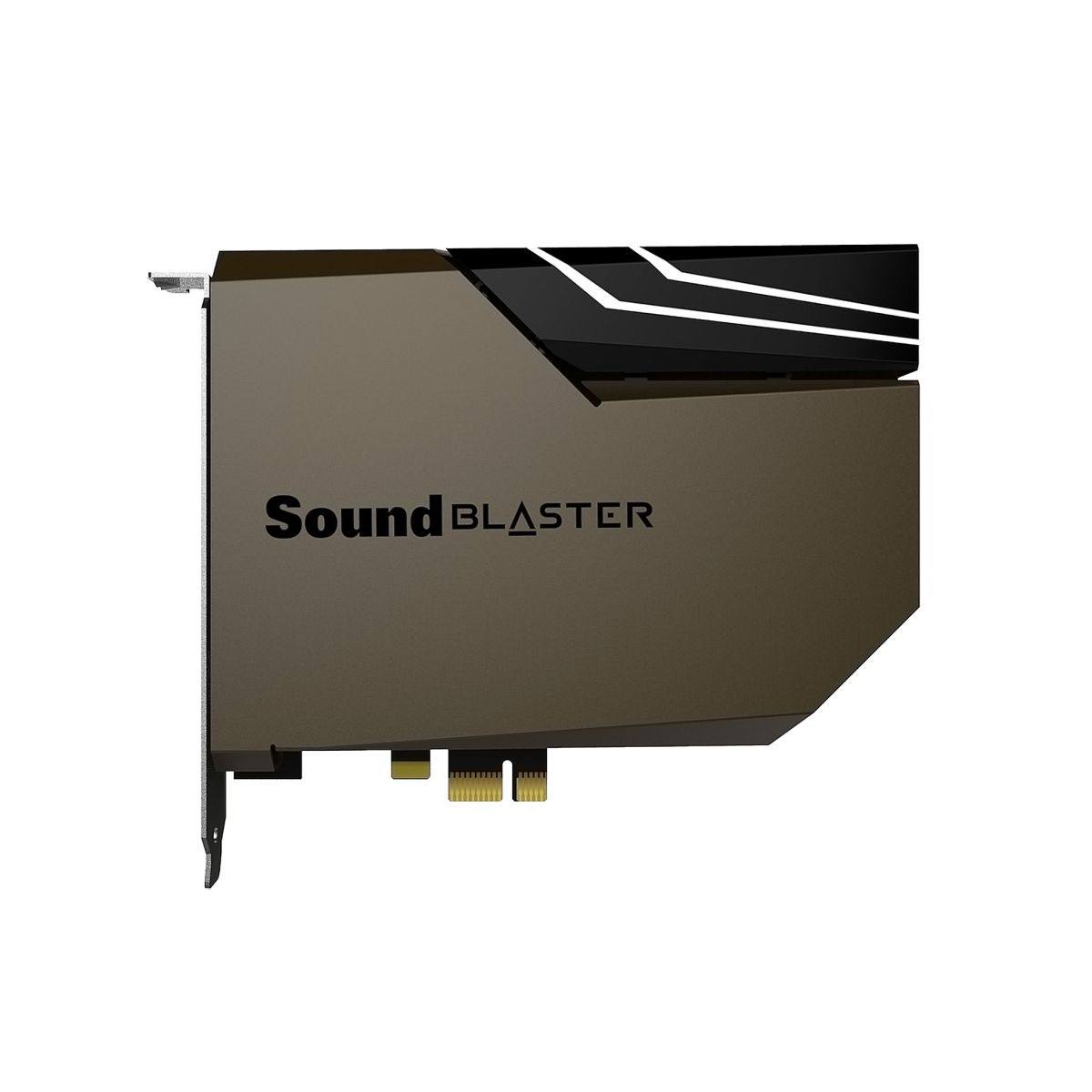

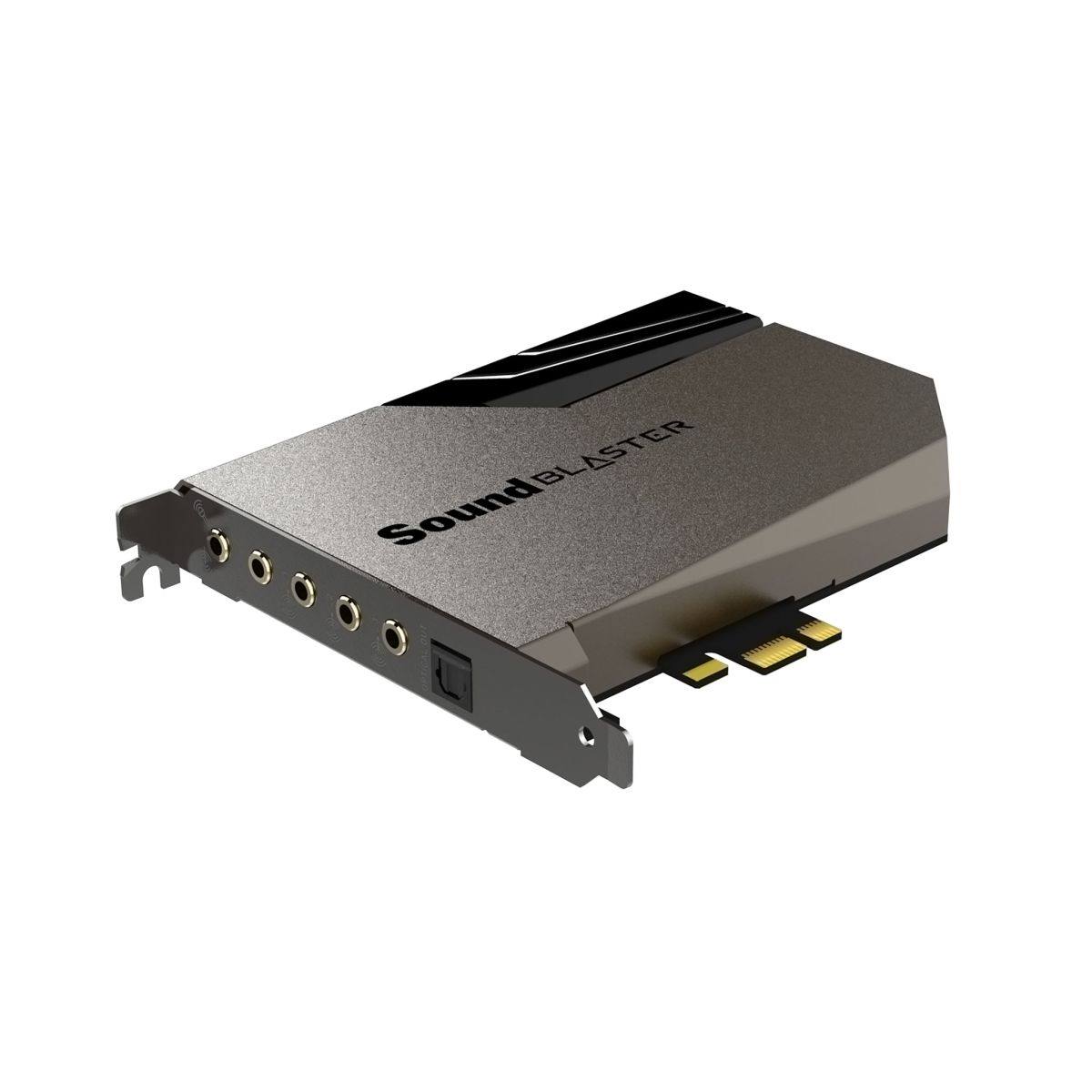

Creative Sound Blaster AE-7

Kết nối & Điều khiển

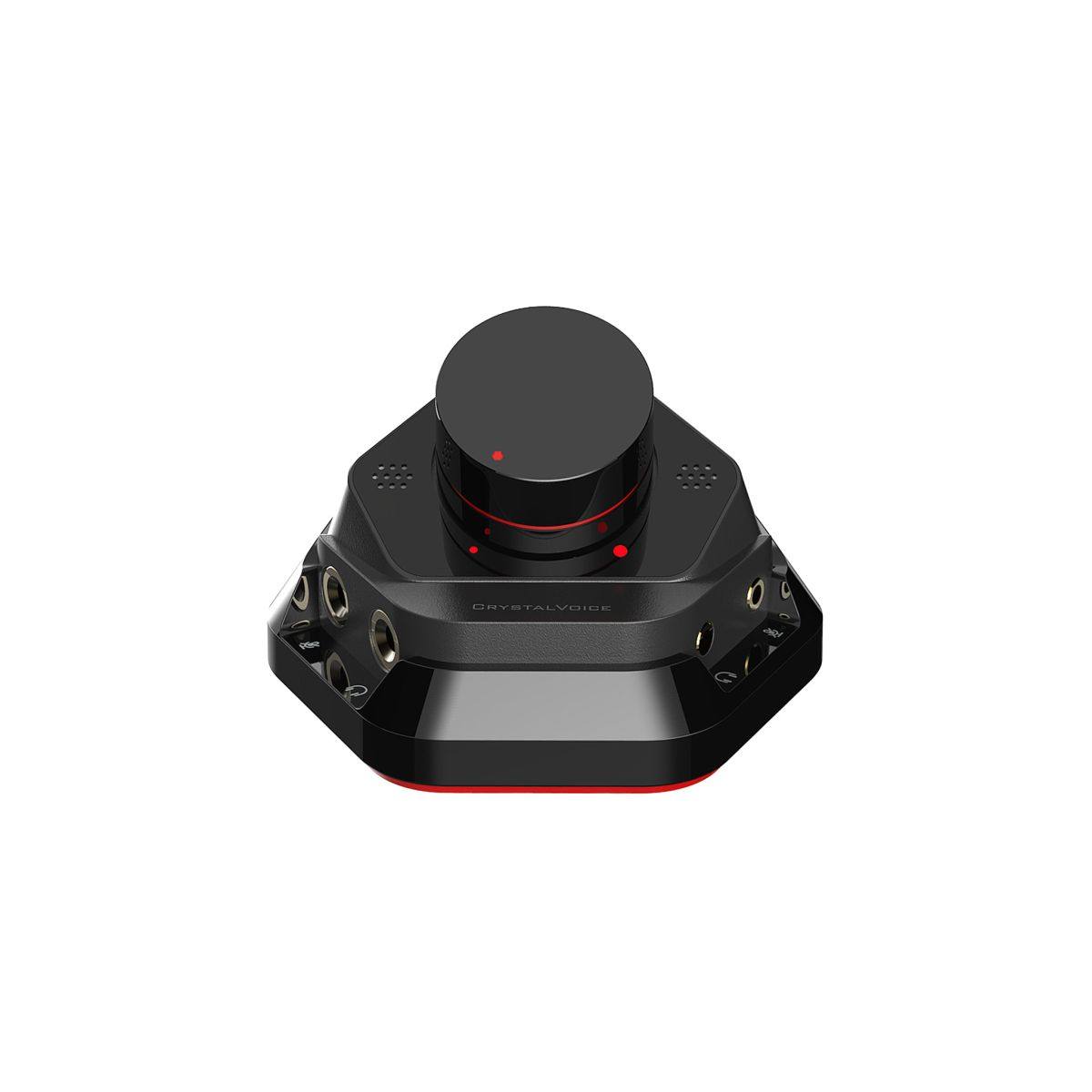

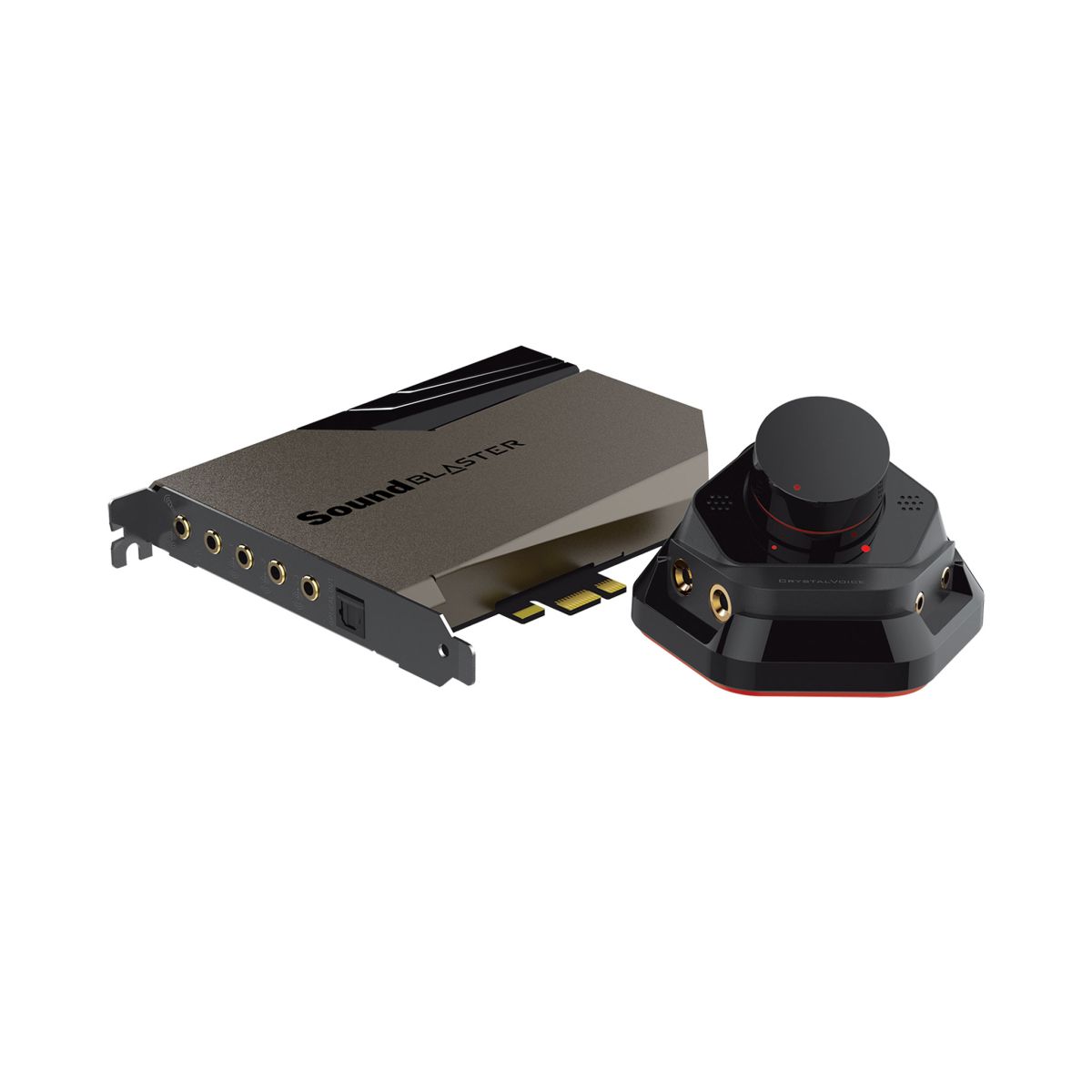

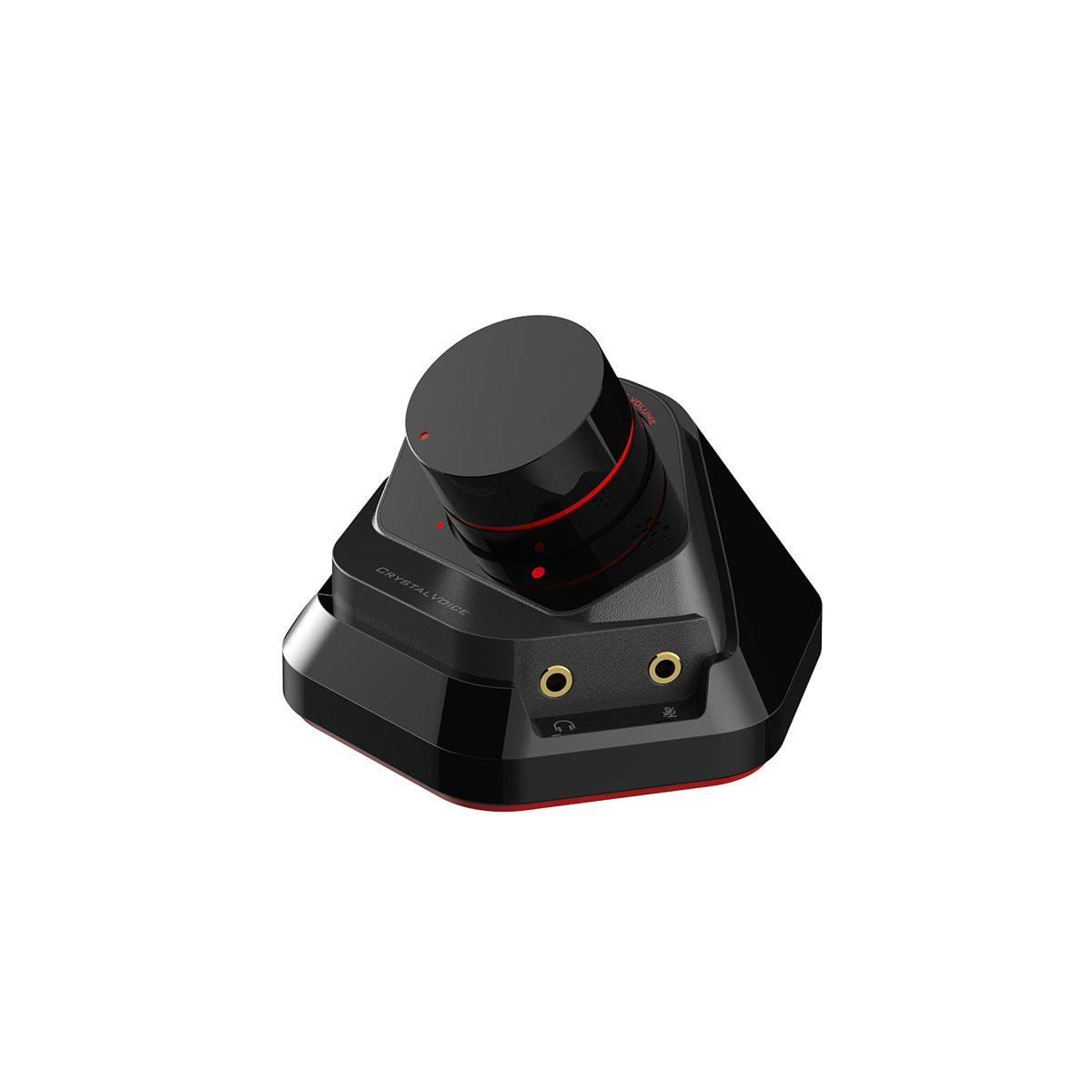

•   Main Card + mô-đun ACM rời (có ngõ mic và headphone riêng).
Amp Tai Nghe
•   Trở kháng đầu ra: 1 Ω.
•   Hỗ trợ tai nghe: 16–600 Ω.
o   IEM 16–31 Ω (1.9 V RMS).
o   Normal 32–149 Ω (3 V RMS).
o   High Gain 150–600 Ω (5.6 V RMS).
Công nghệ Âm thanh
•   Chip Sound Core3D tích hợp.
Độ phân giải & Tần số lấy mẫu
Phát (Direct):
•   Stereo PCM 16/24/32-bit @ 44.1–384 kHz + DSD64 (2.8 MHz).
•   Optical Out 16/24-bit @ 44.1–96 kHz.
Ghi:
•   Mic-in 16/24/32-bit @ 16–96 kHz.
•   AUX-in 16/24-bit @ 44.1–96 kHz.
•   What-U-Hear 16/24/32-bit @ 44.1–48 kHz.
Chế độ DSP (Stereo & 5.1):
•   16/24/32-bit @ 44.1–96 kHz.
DAC (Phát số-analog)
•   Dải động (Stereo): 127 dB.
•   THD+N (Stereo): 0.0001%.

Tình trạng: Còn hàng

Mã sản phẩm: 9CB4FD4E7F
Bảo hành: 12 Tháng

~~5,990,000đ~~ 5,850,000đ

Số lượng:

Mua ngay

Địa chỉ: 495/8/37 Tô Hiến Thành, Phường Diên Hồng, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

Mô tả

Thông số kỹ thuật

Weight	Main Card: 215g / 7.58 oz, Audio Control Unit (ACM): 284g / 10.02 oz
Dimensions	Main Card: 145 x 20 x 128 mm / 5.71 x 0.79 x 5.04 inches, Audio Control Module (ACM): 100 x 92 x 70 mm / 3.94 x 3.62 x 2.76 inches
Headphone Amp	Supported Headphone Impedance: 16–600Ω, Output Impedance: 1Ω, IEM: 16–31Ω (1.9V RMS), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.6V Rms)
Audio Technology	Sound Core3D
Direct Mode	Playback Resolution (Stereo): PCM 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 32-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, DSD64 (2.8 MHz) Playback Resolution (Optical Out): 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz
Recording Resolution	AUX-in: 16-bit / 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz What-U-Hear: 16-bit / 44.1, 48.0 kHz, 24-bit / 44.1, 48.0 kHz, 32-bit / 44.1, 48.0 kHz Mic-in: 16-bit / 16.0, 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz, 32-bit / 44.1, 48.0, 88.2, 96.0 kHz
DSP Mode	Playback Resolution (Stereo & Surround 5.1): 16-bit / 44.1, 48.0, 88.2, 96.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0kHz, 32-bit / 44.1, 48.0, 88.2, 96.0kHz
Platform	PCI-e

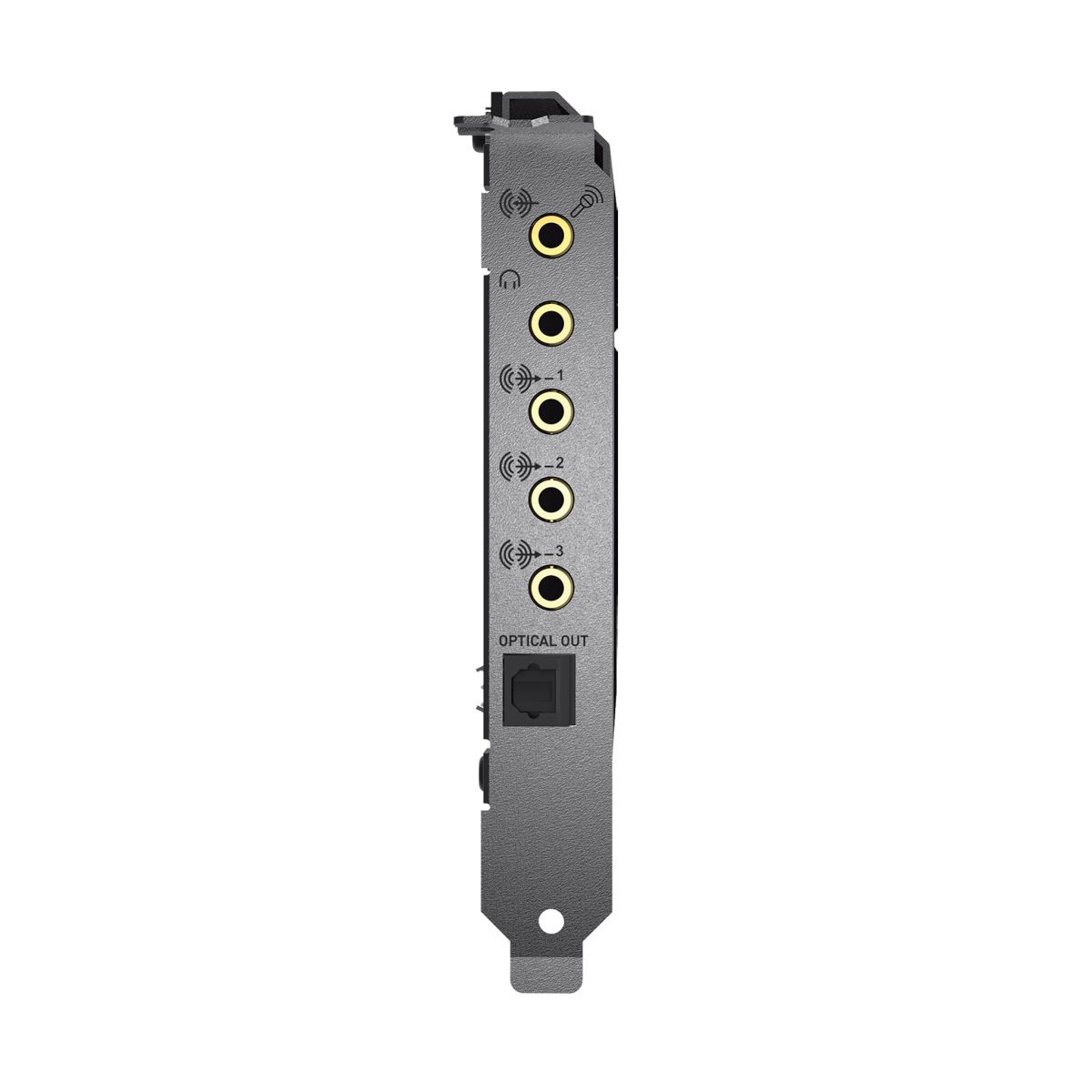

Connectivity Options (Main)	1 x TOSLINK Optical Out, 1 x ⅛″ Rear Out, 1 x ⅛″ Center / Sub Out, 1 x ⅛“ Mic-in / Line-in (Software selectable, default as Mic-in), 1 x ⅛“ Headphone / Headset Out (default as Headphone), 1 x ⅛″ Front-out
Connectivity Options (Accessory)	1 x ¼″ Mic-in (Mono), 1 x ⅛″ Mic-in (Mono), 1 x ⅛″ HP Out (3-pole), 1 x ¼″ HP Out (3-pole)
Headphone Amp	Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.9V RMS), High Gain: 150–600Ω (5.6V Rms), Normal: 32–149Ω (3V Rms)
Supported Operating Systems	Windows® 11, Windows® 8.1, Windows® 10, Windows® 8
DAC	THD+N (Stereo): 0.0001%, Dynamic Range (Stereo): 127 dB
Power	PCI-e bus power
Recommended Usage	Movies and Music
