Creative Sound Blaster AE-9 - Soundcard 7.1

SOUND CARD

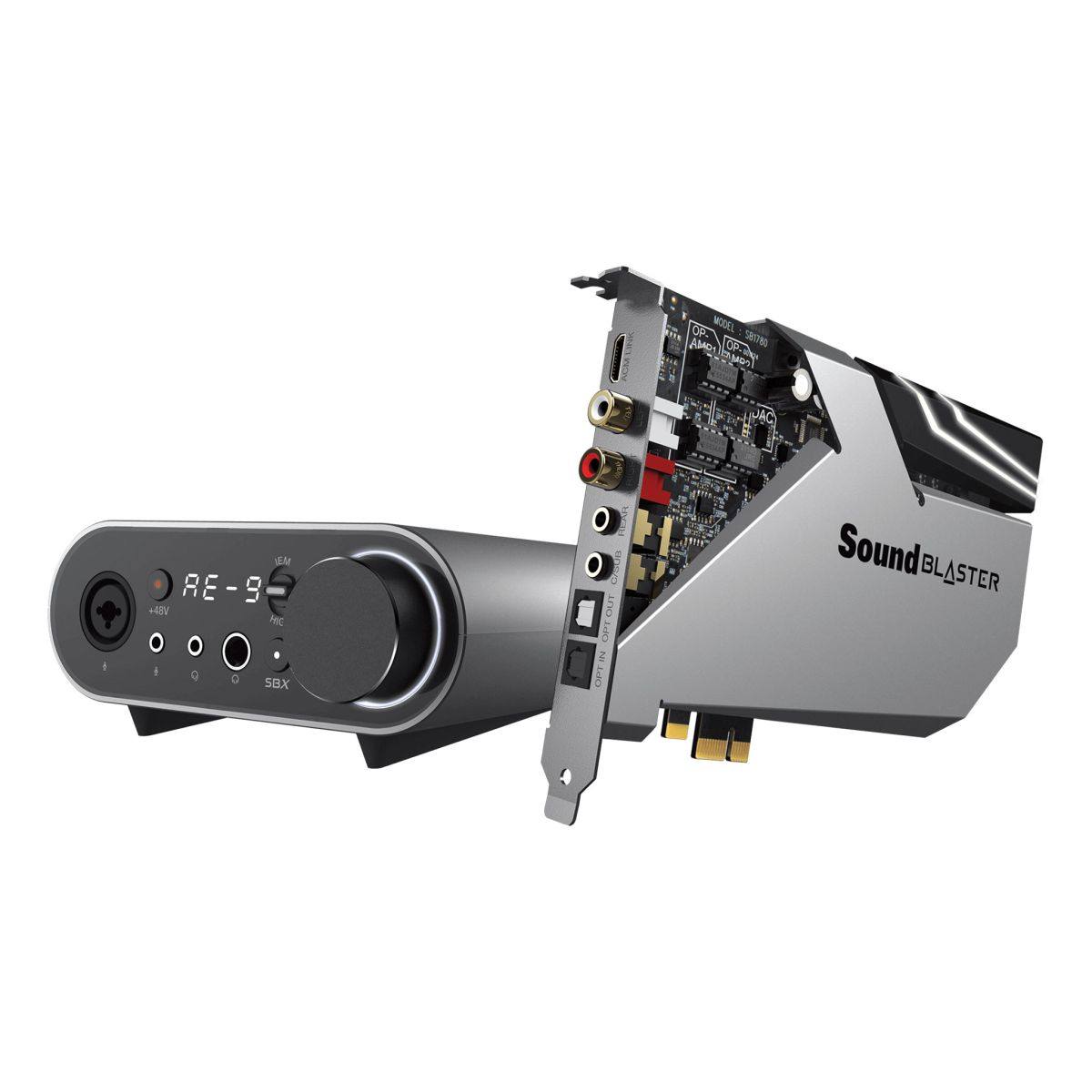

Creative Sound Blaster AE-9 - Soundcard 7.1

Thiết kế & Kích thước

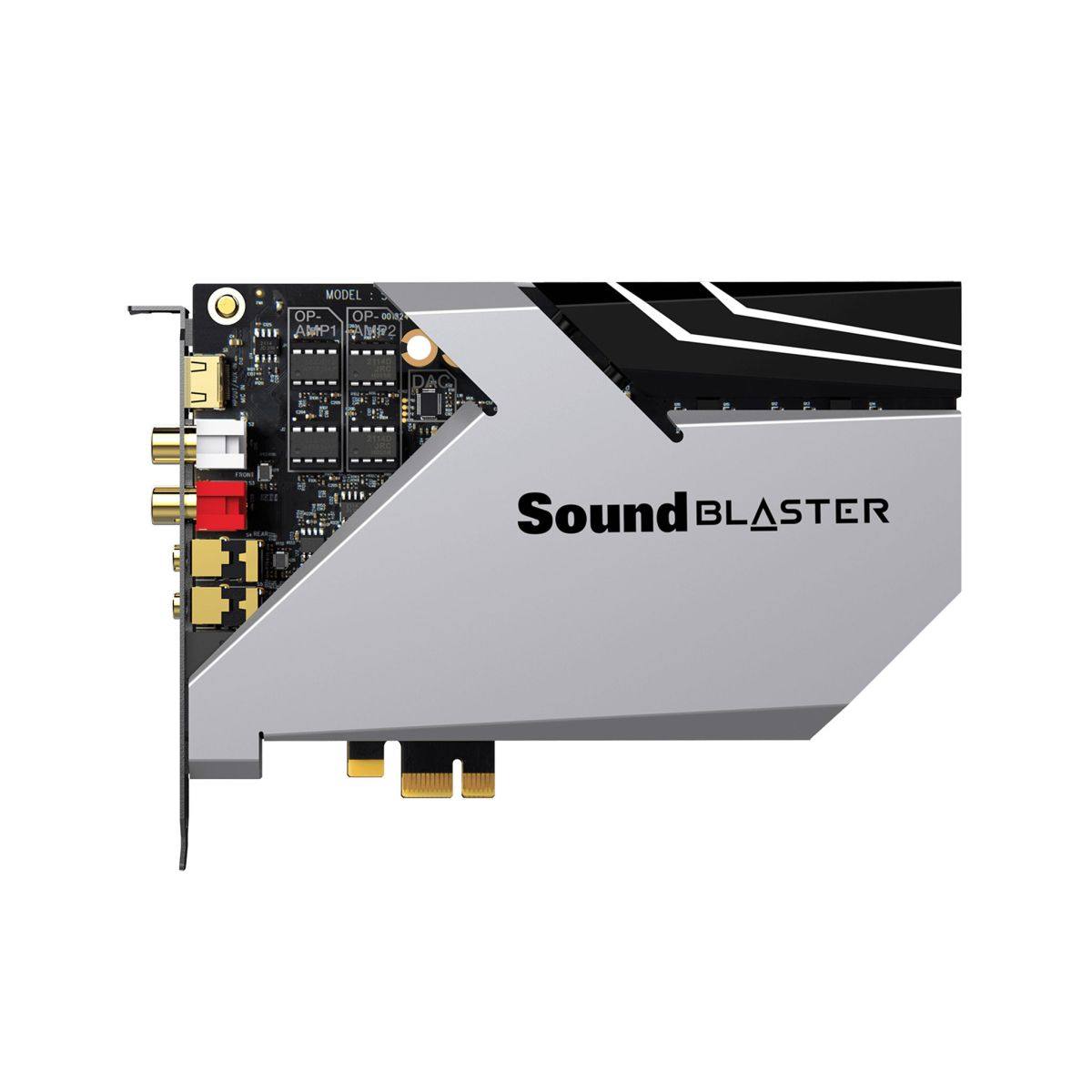

•   Main Card: 230 g, 178 × 22 × 127 mm (PCI-e card).

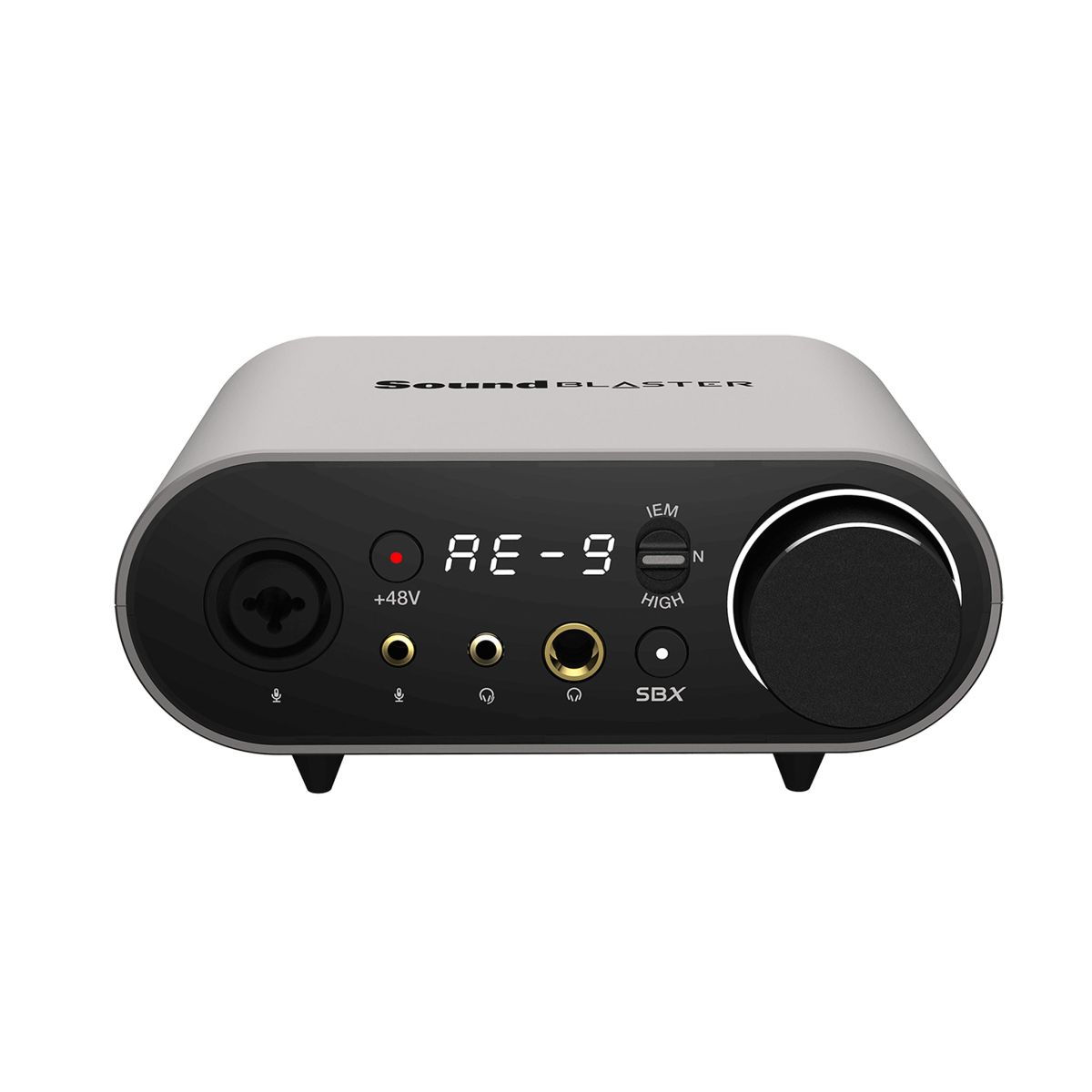

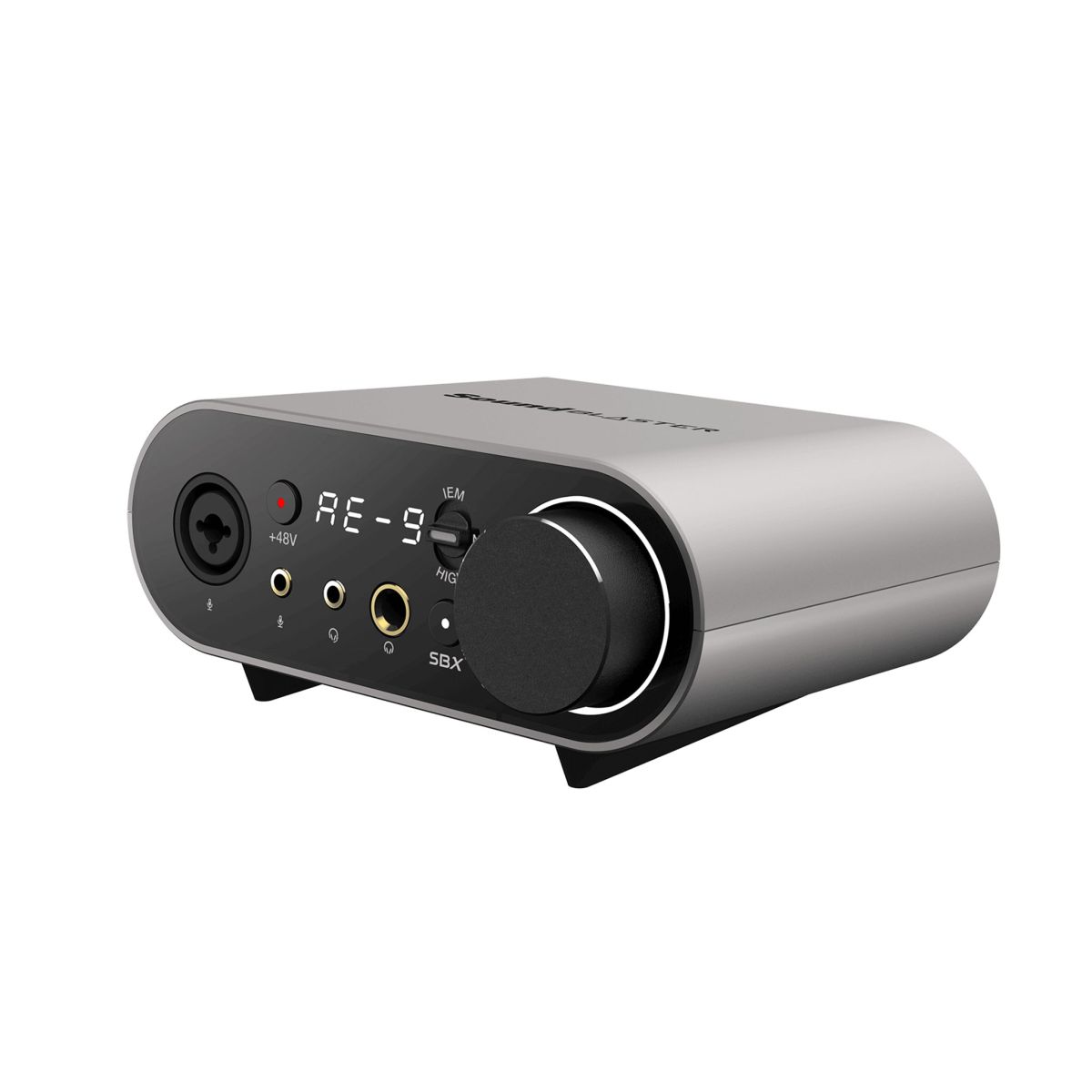

•   Audio Control Module (ACM): 480 g, 150 × 128 × 65 mm (mô-đun điều khiển rời).
Kết nối & Nguồn điện
•   Gắn PCI-Express trong máy tính.
•   Nguồn: lấy từ bus PCI-e + 12V riêng cho ACM (yêu cầu cáp PCI-e 6-pin từ PSU).
Amp Tai Nghe
•   Trở kháng đầu ra: 1 Ω.
•   Hỗ trợ tai nghe: 16–600 Ω.
o   IEM 16–31 Ω (1.5 V RMS).
o   Normal 32–149 Ω (3 V RMS).
o   High Gain 150–600 Ω (5.3 V RMS).
DAC (Phát / chuyển đổi số – analog)
•   Dải động: 129 dB (Stereo).
•   THD+N: 0.0001%.
ADC (Ghi / chuyển đổi analog – số)
•   Dải động: 123 dB (Stereo).
•   THD+N: 0.0004%.
Công nghệ Âm thanh
•   Sound Core3D tích hợp.
Độ phân giải & Tần số lấy mẫu
•   Phát Stereo (Direct): PCM 16/24/32-bit @ 44.1–384 kHz, DSD64.
•   Phát Optical Out: 16/24-bit @ 44.1–192 kHz.
•   Phát Surround 5.1: PCM 16/24-bit @ 48–192 kHz.
•   Ghi Mic-in: 16/24/32-bit @ 16–96 kHz.
•   Ghi AUX-in / Optical In: 16/24-bit @ 44.1–192 kHz.
•   Chế độ DSP (Stereo & 5.1): 16/24/32-bit @ 44.1–96 kHz.

Tình trạng: Còn hàng

Mã sản phẩm: F53FED5E8F
Bảo hành: 12 Tháng

10,890,000đ

Số lượng:

Mua ngay

Địa chỉ: 495/8/37 Tô Hiến Thành, Phường Diên Hồng, Tp Hồ Chí Minh

Thời gian: Thời gian bán hàng từ 9h30 - 20h30

Hotline: 0.888.000.112

Mô tả

Thông số kỹ thuật

Weight	Main Card: 230g, Audio Control Module (ACM): 480g
Dimensions	Main Card: 178 x 22 x 127 mm, Audio Control Module (ACM): 150 x 128 x 65 mm
Headphone Amp	Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, IEM: 16–31Ω (1.5V Rms), Normal: 32–149Ω (3V Rms), High Gain: 150–600Ω (5.3V RMS)
Audio Technology	Sound Core3D
Direct Mode	Playback Resolution (Stereo): PCM 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, PCM 32-bit / 44.1, 48.0, 88.2, 96.0, 192.0, 384 kHz, DSD64 (2.8 MHz) Playback Resolution (Optical Out): 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz Playback Resolution (Surround 5.1): PCM 16-bit / 48.0, 96.0, 192.0kHz, PCM 24-bit / 48.0, 96.0, 192.0kHz
Recording Resolution	Mic-in: 16-bit / 16.0, 44.1, 48.0, 88.2, 96.0 kHz, 24-bit / 44.1, 48.0, 88.2, 96.0 kHz, 32-bit / 44.1, 48.0, 88.2, 96.0 kHz AUX-in: 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz Optical In: 16-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0, 192.0kHz
DSP Mode	Playback Resolution (Stereo & Surround 5.1): 16-bit / 44.1, 48.0, 88.2, 96.0kHz, 24-bit / 44.1, 48.0, 88.2, 96.0kHz, 32-bit / 44.1, 48.0, 88.2, 96.0kHz
Platform	PCI-e

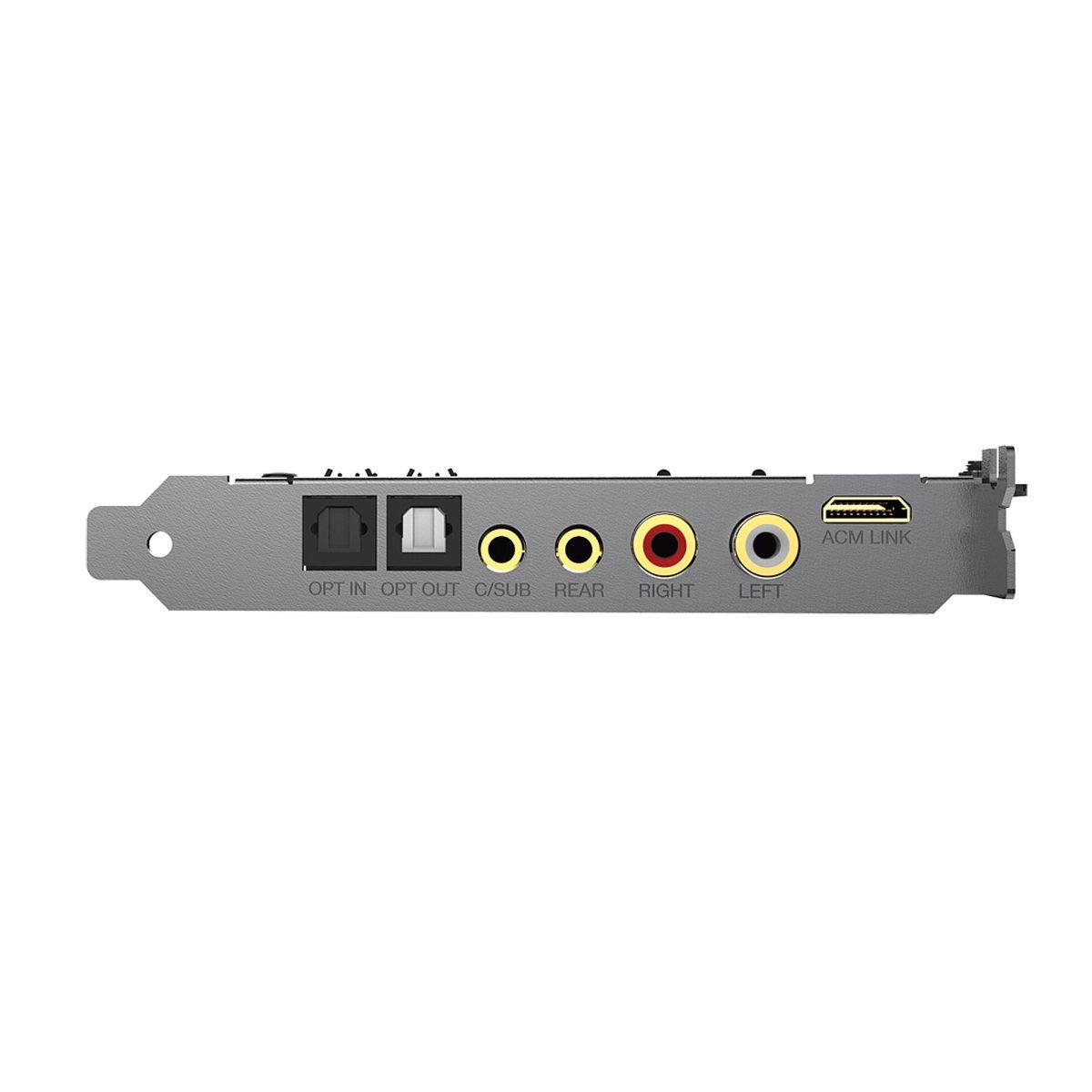

Connectivity Options (Main)	1 x ⅛″ Rear Out, 1 x ⅛″ Center / Sub Out, 1 x TOSLINK Optical In, 1 x TOSLINK Optical Out, 1 x ACM Link, 1 x 6-pin PCI Express (PCI-e) Power Header (required for ACM), 2 x RCA (L/R) Front Out
Connectivity Options (Accessory)	1 x ⅛″ Mic-in (Mono), 1 x ⅛″ HP Out (3-pole), 1 x ¼″ HP Out (3-pole), Line In: 2 x RCA (L / R)
Headphone Amp (Detailed)	Output Impedance: 1Ω, Supported Headphone Impedance: 16–600Ω, High Gain: 150–600Ω (5.3V RMS), Normal: 32–149Ω (3V Rms), IEM: 16–31Ω (1.5V Rms)
Supported Operating Systems	Windows® 11, Windows® 8.1, Windows® 10, Windows® 8
DAC	Dynamic Range (Stereo): 129 dB, THD+N (Stereo): 0.0001%
ADC	Dynamic Range (Stereo): 123 dB, THD+N (Stereo): 0.0004%
Power	PCI-e bus power, +12V for ACM (requires 6-pin PCI Express power connector from PC power supply)
